Assignment 3 — Shaders

Due Monday 3/3 at 11:59 pm. You must work individually.

Goals

Integrate the various concepts learned in the lectures and create a program that can color the mesh with various materials, lights, and shaders.

Associated Labs

Task 1: Centering the Object

Start with the skeleton code. The input argument should be the path to the resources folder, exactly as in Lab 0. Optionally, there is an argument that sets the OFFLINE flag to true, in which case the program will save the first OpenGL screen as an image file and then exit. We will be using this to help speed up the grading process, so do not modify the way arguments are parsed. For example, running the following from the commandline should show Task 1 in an OpenGL window:

./A3 ../resources 1

and running the following should write the first image of the OpenGL window to output.png and exit the program.

./A3 ../resources 1 1

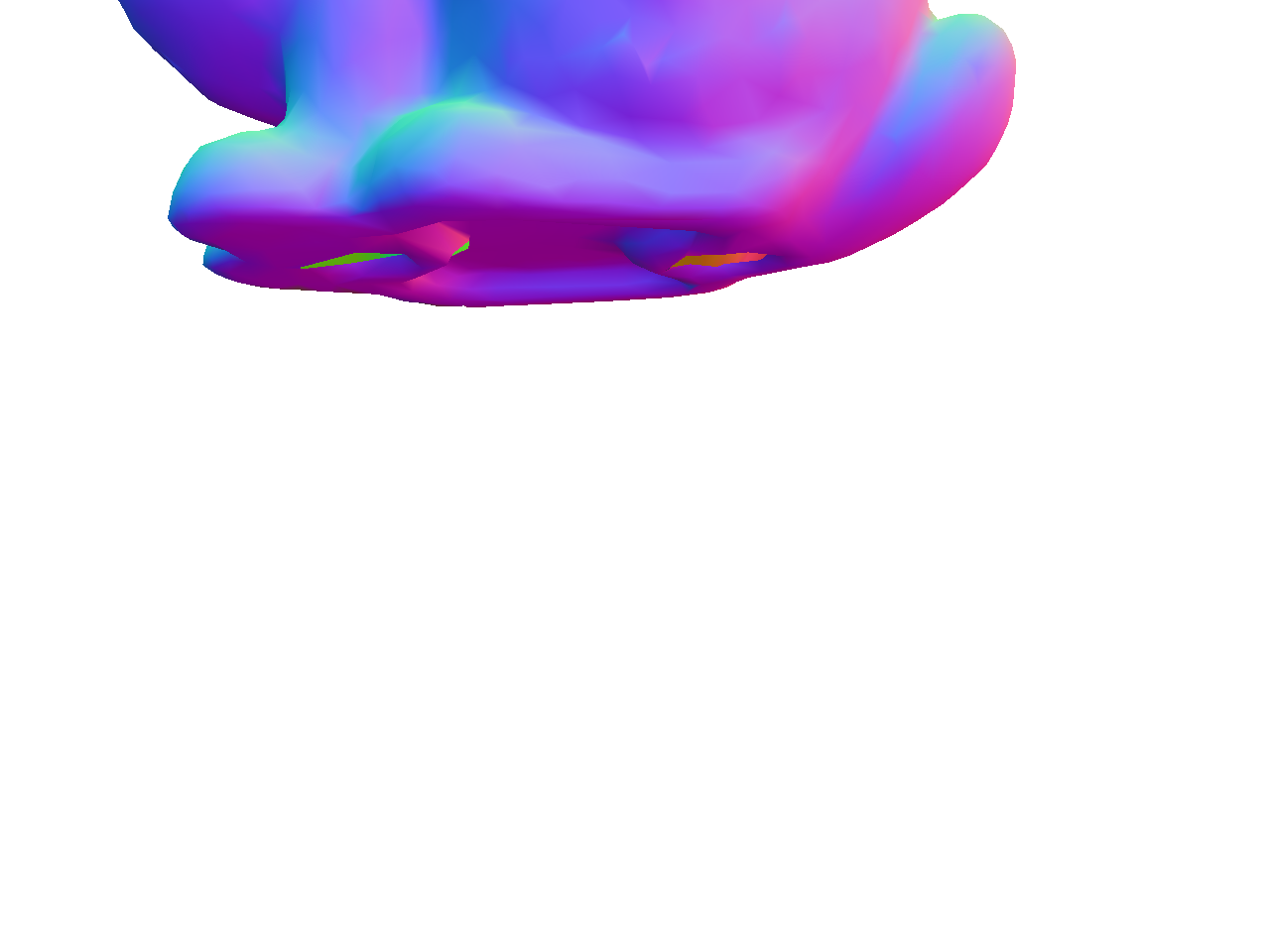

The initial scene draws a single bunny. The only transform applied is the viewing transform, implemented in the Camera class. The initial camera position is at (0, 0, -2), and the mouse applies a turn-table style rotation about the world origin. Try dragging the mouse around to rotate the bunny.

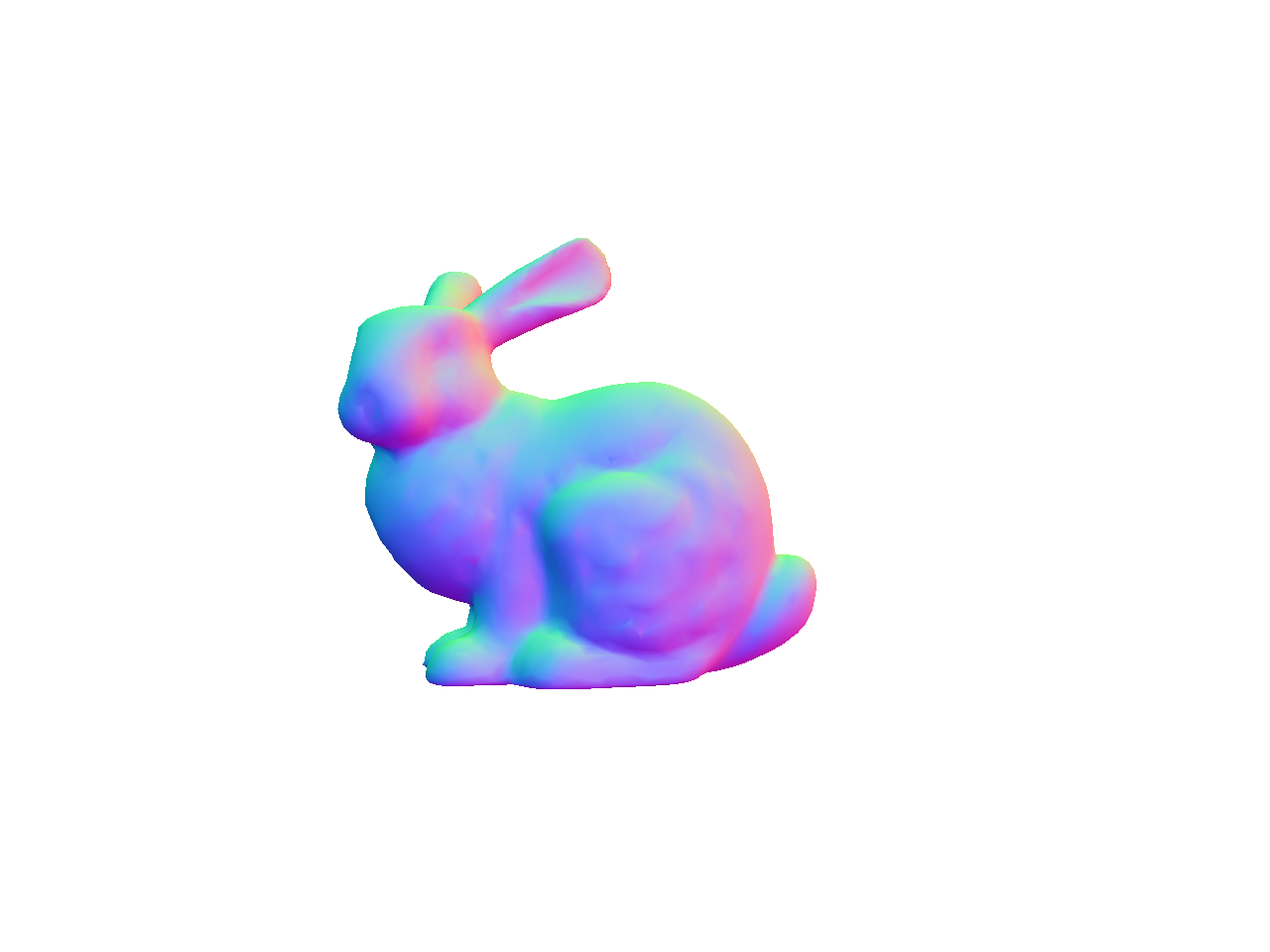

Transform the bunny so that it is scaled by 0.5 and is translated by (0.0f, -0.5f, 0.0f). The resulting bunny should appear near the center of the window. Note the right ear of the bunny. If it looks different from the image, try swapping the order of translation and rotation.

Task 2: Blinn-Phong Shader

Next we’re going to add a Blinn-Phong shader. (Look at Lab 7.) Set up the code so that pressing the s/S keys cycles through the two shaders (Normal and Blinn-Phong). As we add more shaders in the subsequent tasks, the s/S keys will be used to cycle through more and more shaders.

Note: The Blinn-Phong shader will need to use the modelview information to transform the position and normal to camera space. On the other hand, the Normal shader from Task 1 does not need to transform the normal, meaning that when the Normal shader is selected, the color is based on the model space normal. If you prefer, you can change the Normal shader to also use eye-space normals. We will accept both outputs for the Normal shader.

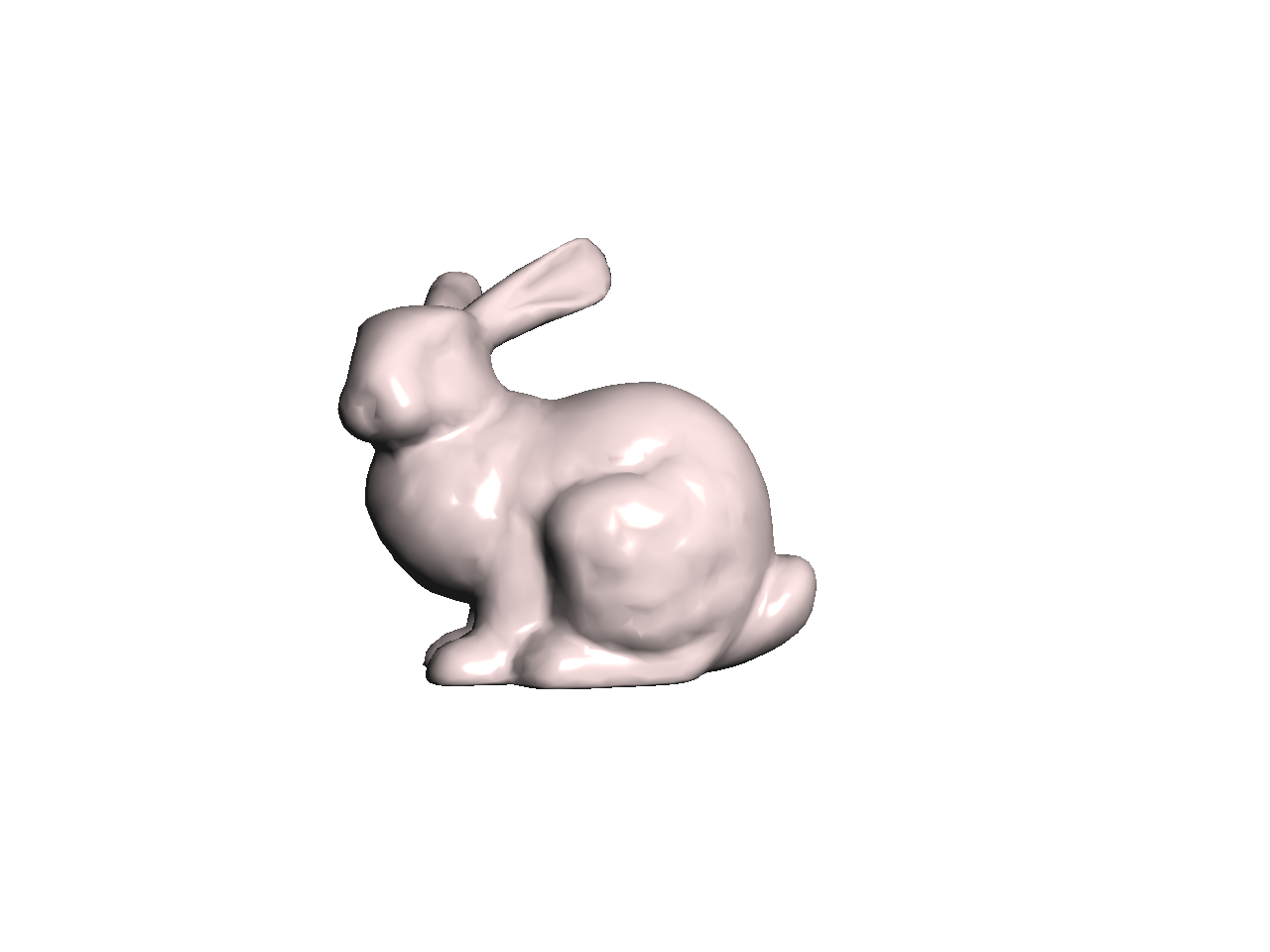

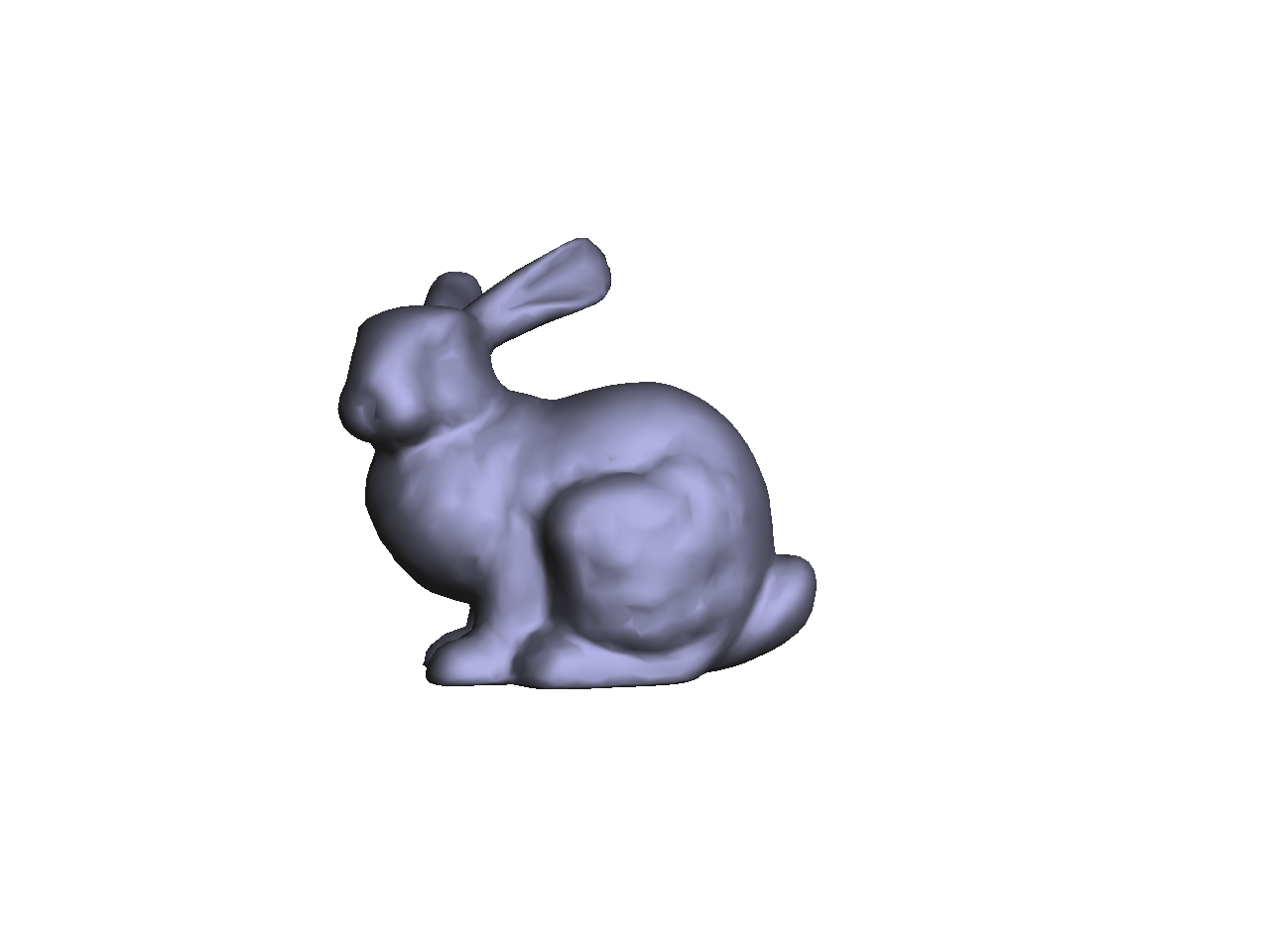

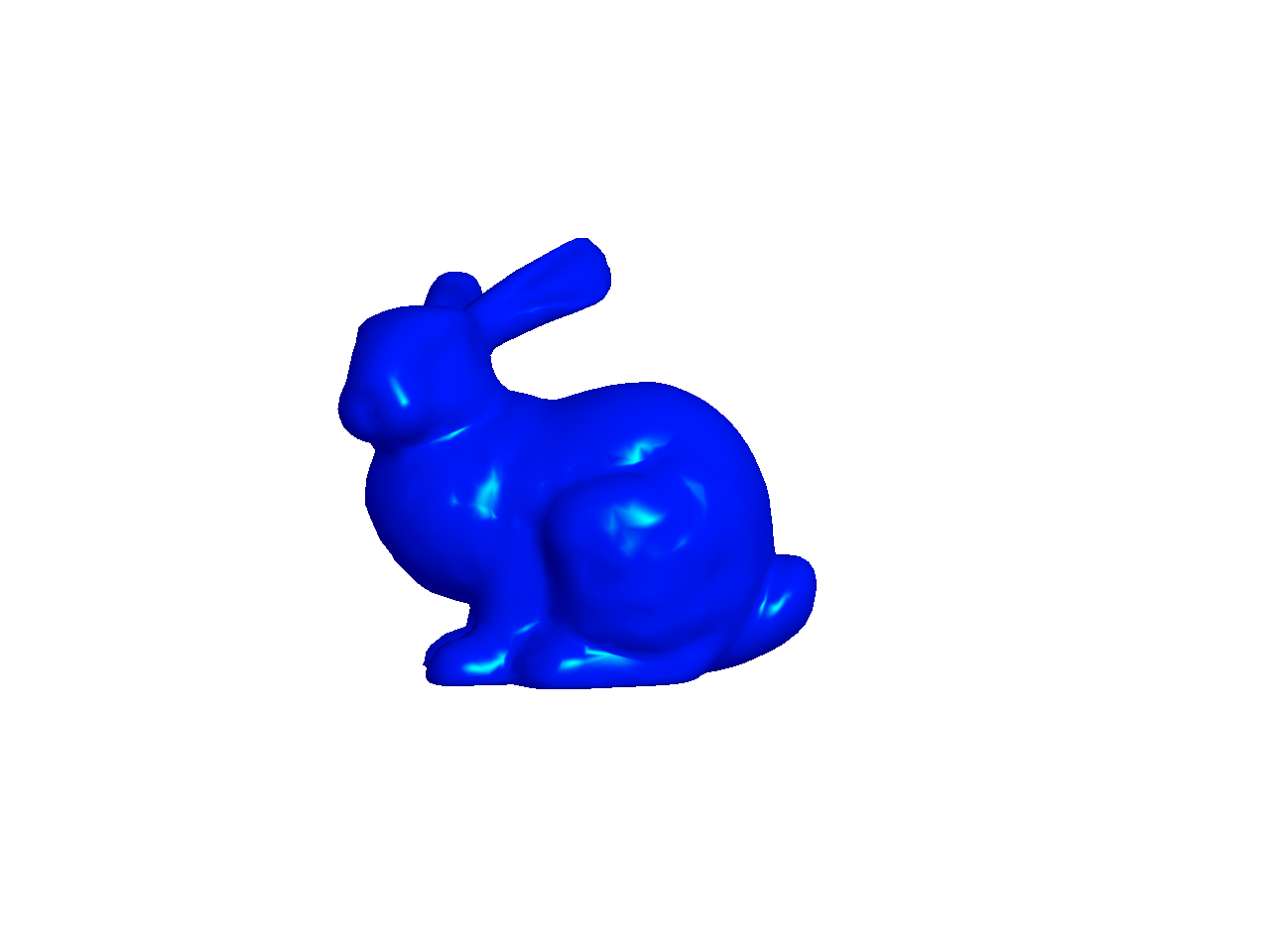

Create three materials and add keyboard hooks to cycle through them using the m/M keys. You should create a Material class for this. (After you create new files (cpp/h), you have to rerun cmake. You don’t need to delete your build folder to do this.) The three materials should look like the following.

In these examples, the light color should be white, and the light position should be (1, 1, 1) in camera space.

The parameters for the first material must be exactly the same as in Lab 7:

For the second and third materials, you will have to try some values to get the desired effect. Feel free to post a public/anonymous message to check if your results are acceptable.

Make sure to use the inverse transpose of the modelview matrix to transform the normal. The inverse transpose matrix should be calculated in your C++ code and passed in as a uniform mat4 to the vertex shader. (Look at the GLM docs for inverse() and transpose().) After transforming the normal with the inverse transpose modelview matrix, the resulting normal should be normalized and then passed to the fragment shader. The interpolated normal in the fragment shader should be normalized again. Note that this was optional in Lab 7, because the modelview matrix only consisted translations and rotations. In this task, we have a scale, and then in a later task, we will include a shear.

As in Lab 7, we’re not going to do attenuation in this assignment.

Multiple Shaders

Note that you should not use an if/switch statement in the vertex/fragment shader to toggle between the Normal and Blinn-Phong shaders. Even though this works fine, it is not the right way to do things. First, it adds an extra conditional in the fragment shader, which is executed for every single vertex or fragment, which is bad from an efficiency point of view. Second, this may work for a simple assignment, but in a bigger project with multiple objects, this will get ugly quickly. The proper way is to put the if/switch inside the CPP file. You should do something like this:

if(something) {
    glUseProgram(pid0);
} else {
    glUseProgram(pid1);
}

Of course, there are other ways to do this as well. The important thing is to not have the if/switch statement in your shaders for toggling between programs. We want the shaders to be as simple as efficient as possible, since they are run for each vertex and fragment.

When working with multiple GLSL programs, make sure you create separate handles for the attribute and uniform parameters for each GLSL program you create. For example, the call

glGetAttribLocation(pid, "aPos");

should be made for each pid you create. In other words, you need to call addAttribute(...) in each Program instance you create even if the attribute name is the same for the two programs. Ditto for uniform.

Task 3: Multiple Lights

Add an extra light to the Blinn-Phong shader. You should create a Light class for this. The final fragment color is going to be a simple sum over the lights. For each channel (R, G, and B), use the following formula: \[ \displaylines{ R = A_R + \sum_{i=1}^n L^i_R (D^i_R + S^i_R),\\ G = A_G + \sum_{i=1}^n L^i_G (D^i_G + S^i_G),\\ B = A_B + \sum_{i=1}^n L^i_B (D^i_B + S^i_B), } \] where \(L^i\) is the color of the ith light, \(D^i\) is the material’s diffuse response to the ith light, and \(S^i\) is the material’s specular response to the ith light. In other words, for each light, we compute the diffuse and specular components, and then we apply a component-wise multiplication with the light color. The results are then summed up for all the lights plus the ambient color \(A\).

Note that GLSL will apply component-wise multiplication if two vectors are multiplied. If foo, bar, and baz are all vec3s, then

foo = bar * baz;

is the same as

foo.x = bar.x * baz.x;
foo.y = bar.y * baz.y;
foo.z = bar.z * baz.z;

Use these values for the light positions and colors:

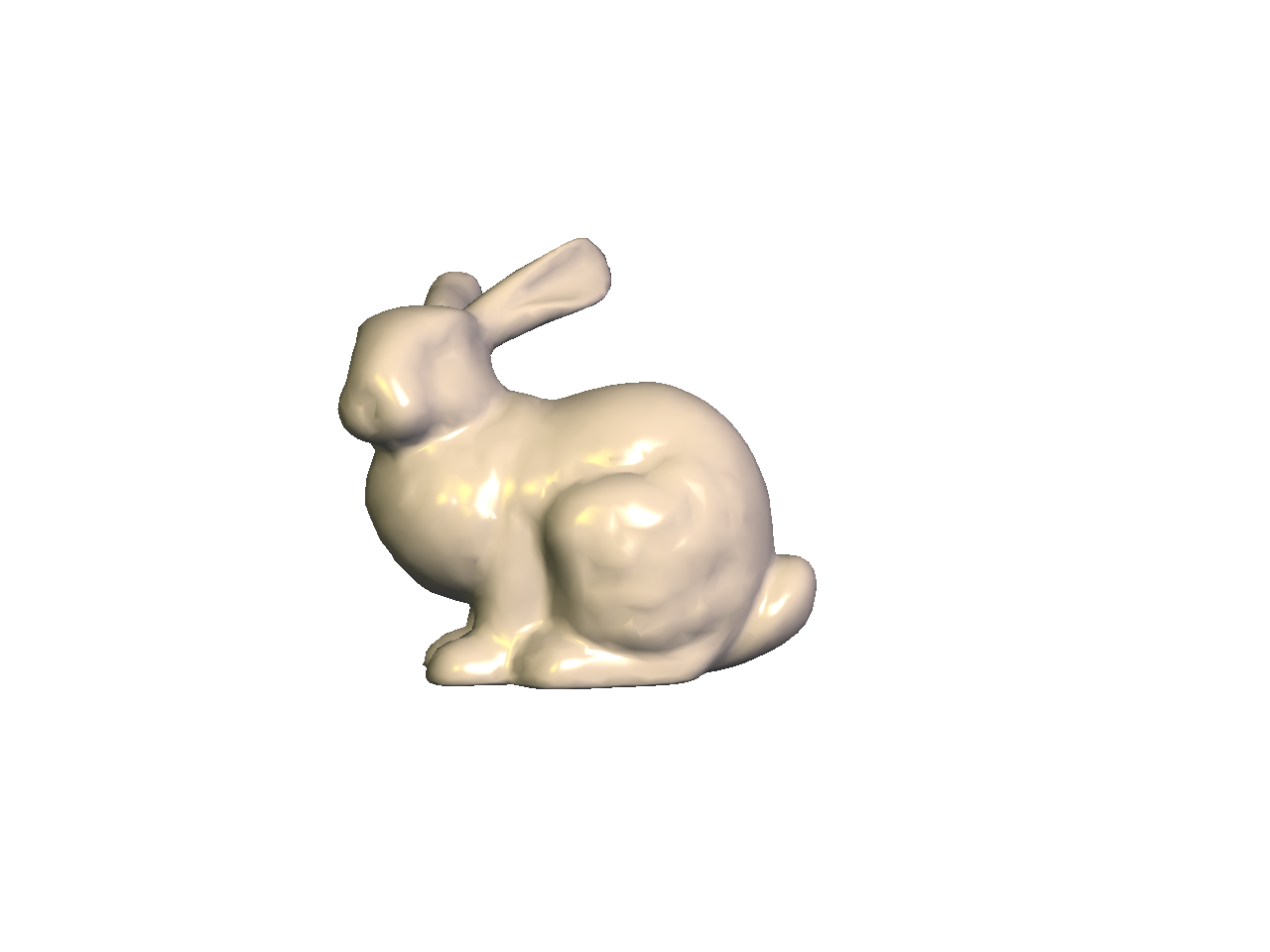

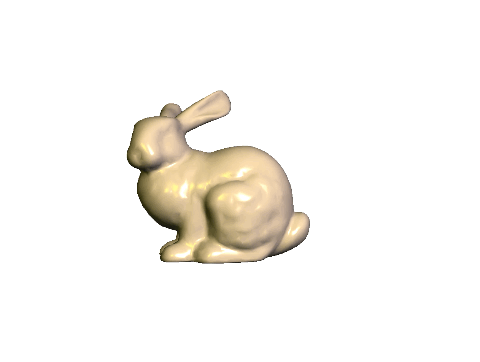

When you load the program, before you move the mouse, you should get exactly the figure shown here – the stronger light to the right and a weaker light to the left.

Add keyboard hooks so that you can move the lights. Use the keys l/L to cycle through the lights, and the keys x/X and y/Y to move the selected light in the -X, +X, -Y, and +Y directions respectively. As before, m/M should cycle through the three materials.

Task 4: Multiple Moving Objects

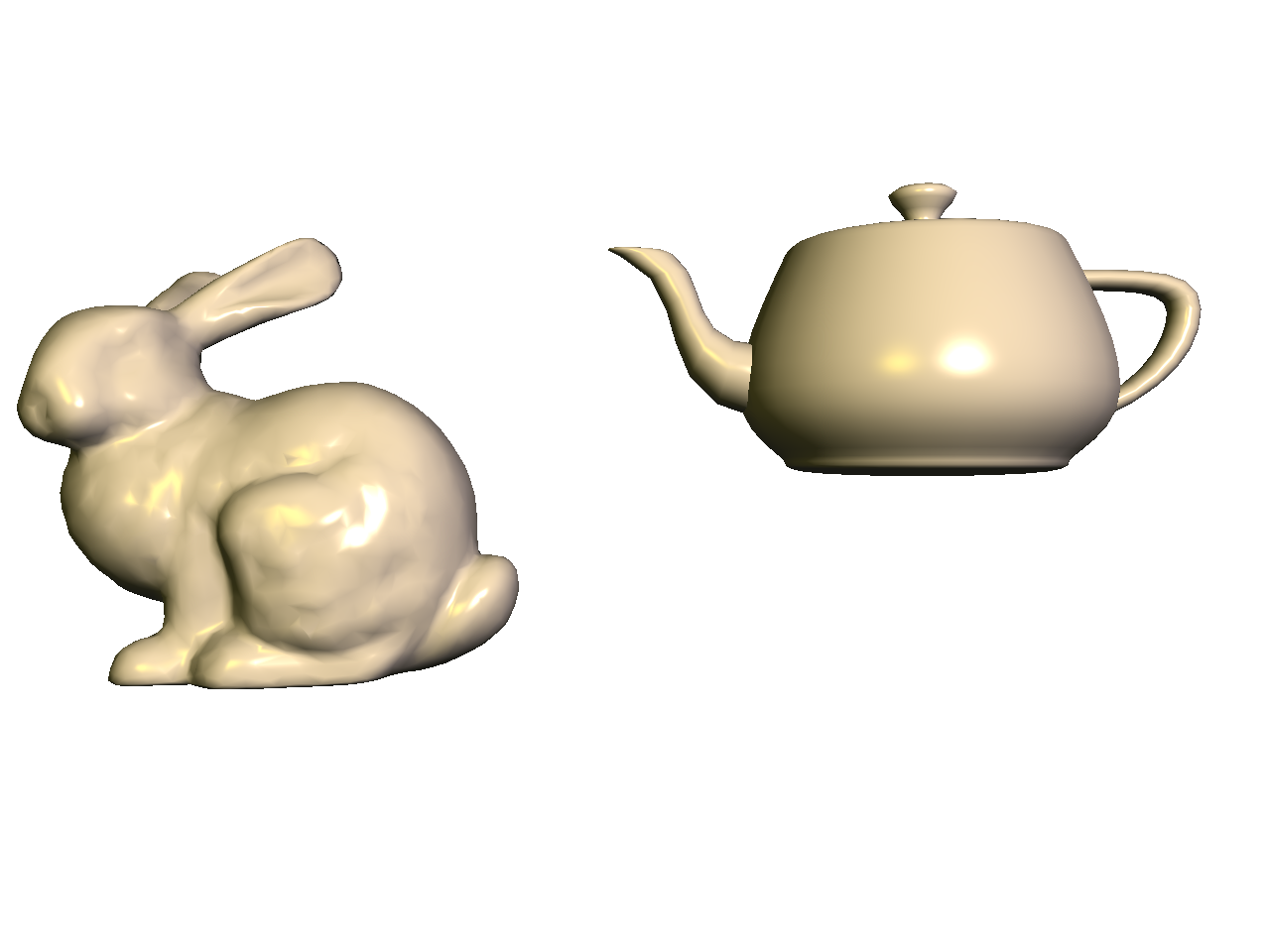

Now add a teapot to the scene.

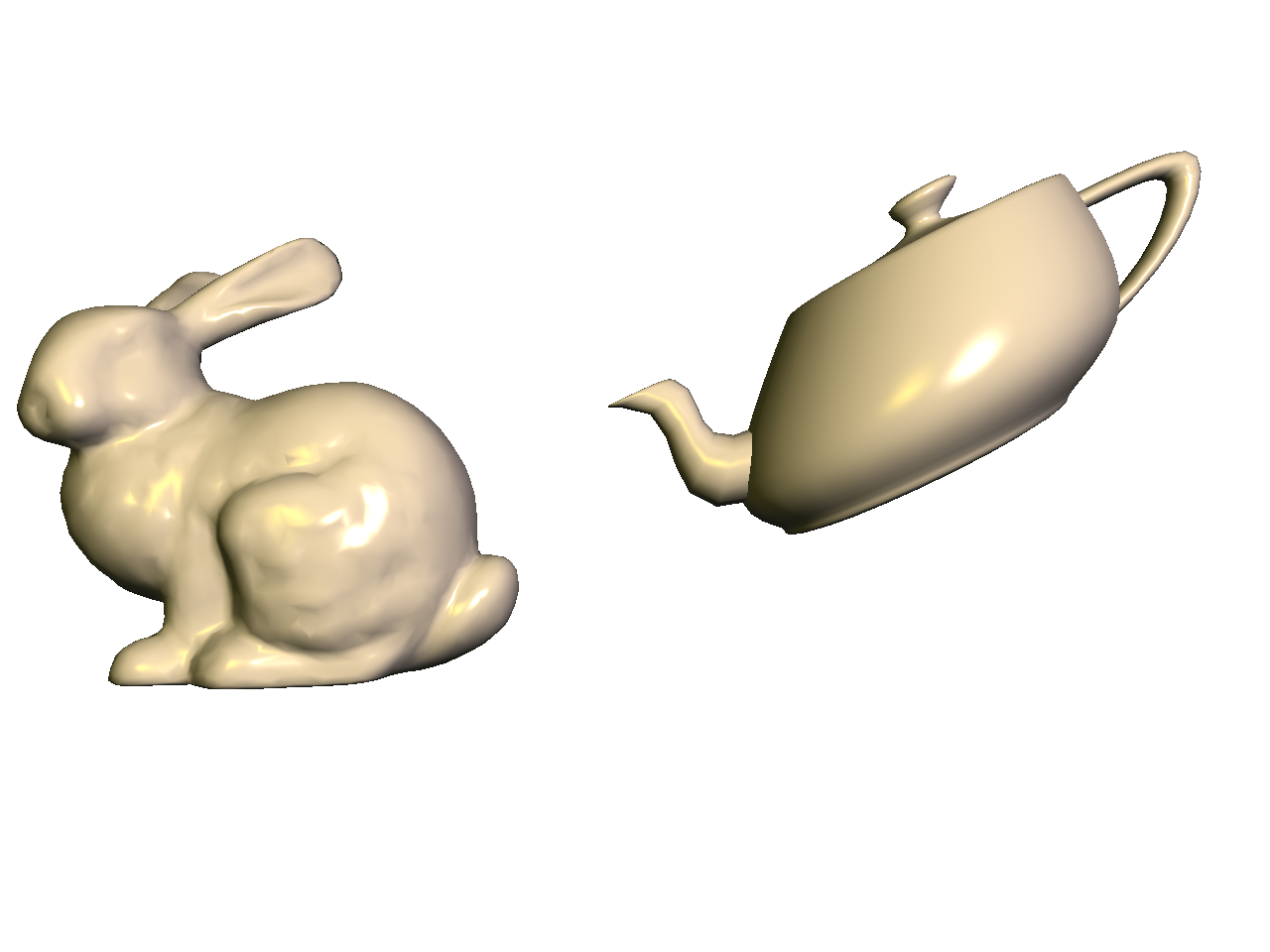

Now shear the teapot, so that it looks like it is about to pour some tea onto the bunny. You can do this with the following code:

glm::mat4 S(1.0f);
S[0][1] = 0.5f;
MV->multMatrix(S);

Remember to use the inverse transpose of the modelview matrix and to normalize the normal in the vertex shader. The interpolated normal should be normalized again in the fragment shader.

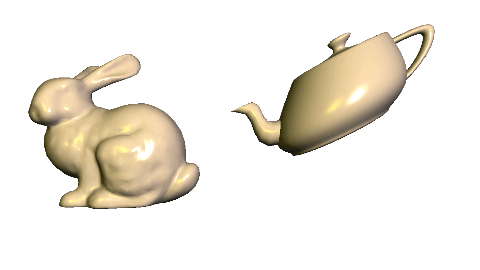

Finally, make the bunny rotate and teapot shear with time, using the time variable t, which is defined in the skeleton code. Pressing the spacebar toggles the value of t to be \(0\) or the time.

This should make the teapot’s spout dodge the bunny’s ears.

Task 5: Silhouette Shader

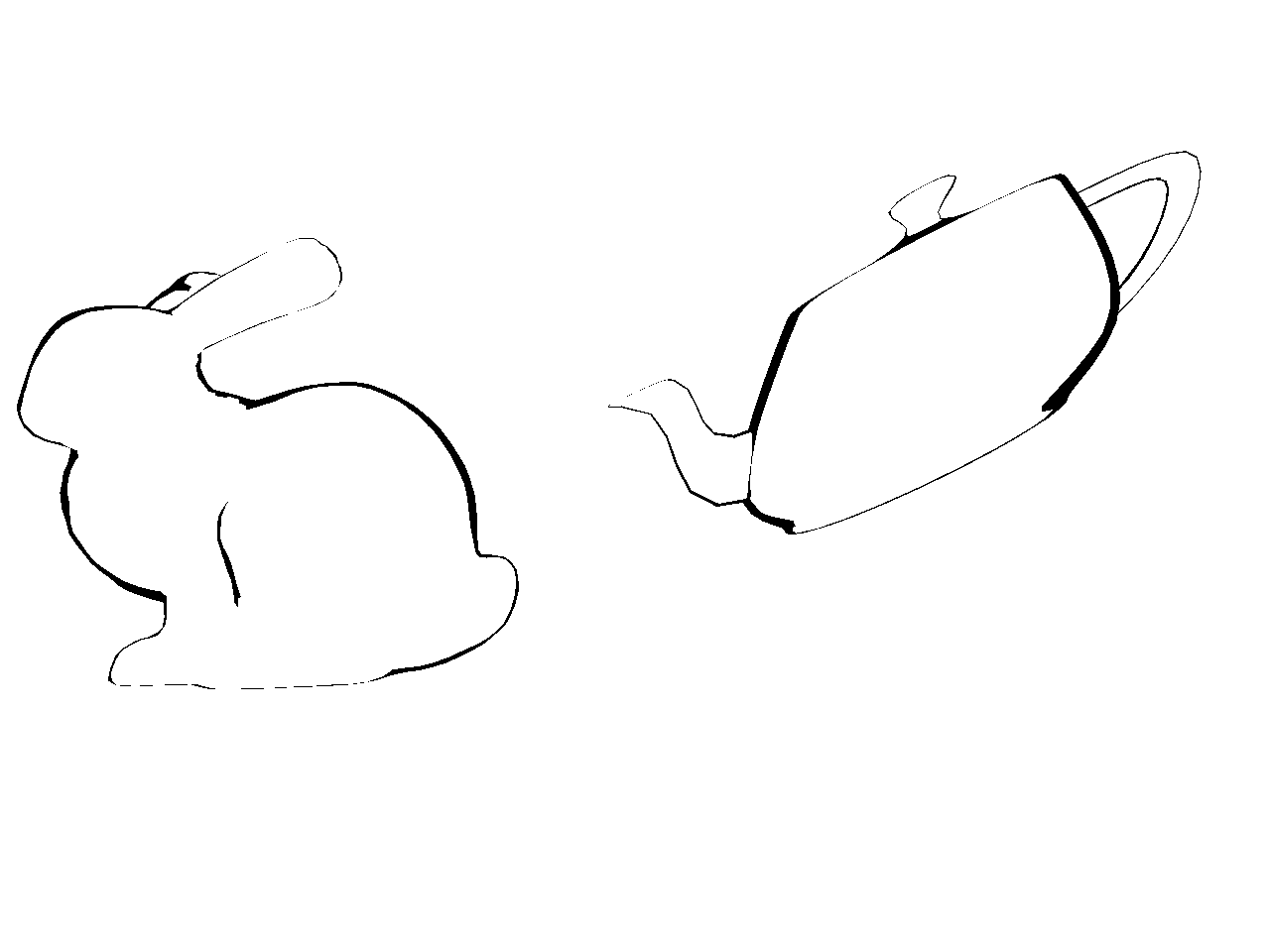

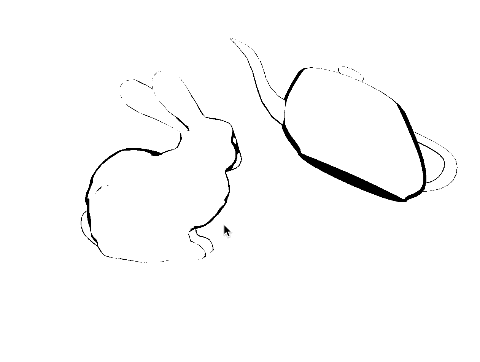

Create a silhouette shader. Set up the code so that pressing the s/S keys cycles through the three shaders (Normal, Blinn-Phong, and Silhouette). The silhouette shader should color all fragments white, except for those fragments whose normals form a right angle with the eye vector.

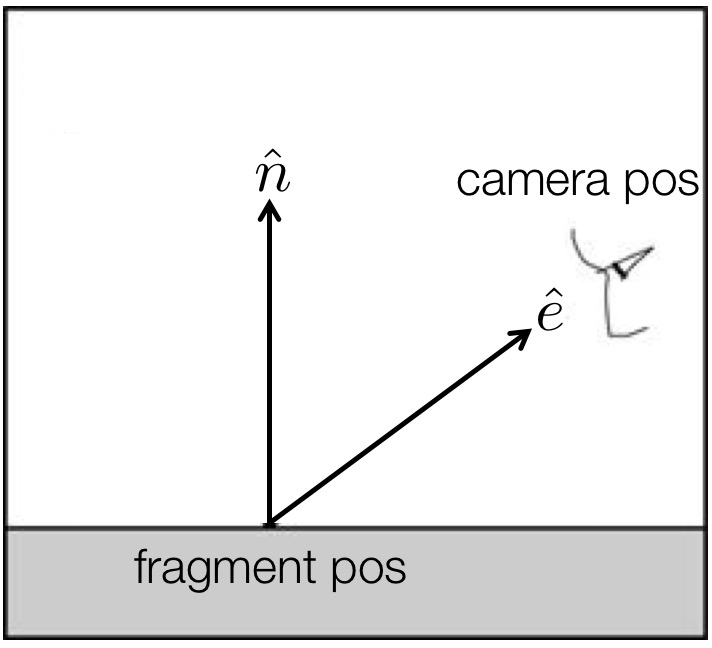

Take the dot product of the normal and eye vectors and threshold the result. If the result is “close enough” to zero, then color that fragment black. Remember that both of these vectors need to be in the camera space. Use \(0.3\) as the threshold. In other words, if the following is true, then set the color to black. Otherwise, set the color to be white: \[ \| \hat{n} \cdot \hat{e} \| < 0.3, \] where \(\hat{n}\) is the normal, and \(\hat{e}\) is the eye (view) vector.

Task 6: Cel Shader

Finally, add a cel shader. Set up the code so that pressing the s/S keys cycles through the four shaders (Normal, Blinn-Phong, Silhouette, Cel).

The silhouette should be black, like in the previous task. For non-silhouette areas, quantize the colors into \(N\) levels. Quantization should be applied to each of the RGB channels separately. There are many ways to do this, but here is one version that quantizes the red channel into 5 levels:

if(R < 0.25) {
    R = 0.0;
} else if(R < 0.5) {
    R = 0.25;
} else if(R < 0.75) {
    R = 0.5;
} else if(R < 1.0) {
    R = 0.75;
} else {
    R = 1.0;
}

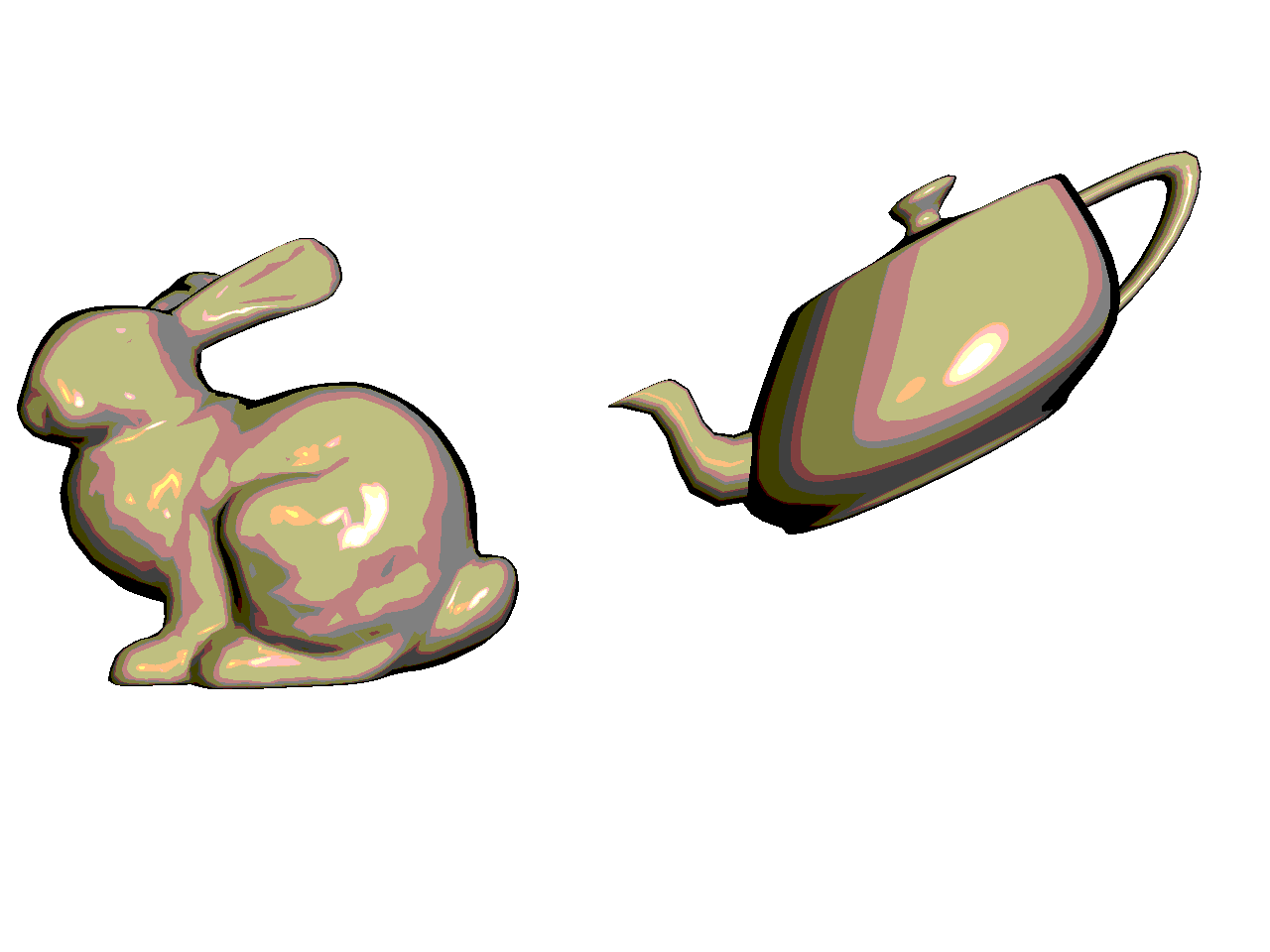

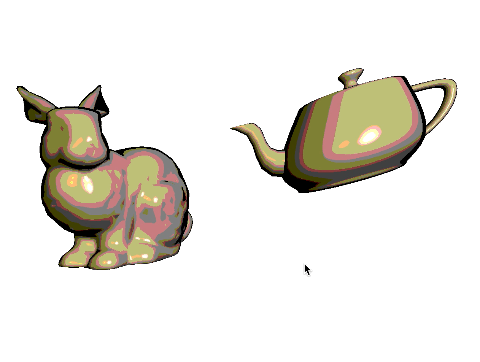

If green and blue are quantized in the same way, this is the result:

Your code should work with all three materials from Task 2.

Since cel shading is often used for artistic purposes, you do not need to get these exact results. The requirements are:

Interaction Summary

HINT: Debugging OpenGL & GLSL

Rubric

Total: 100 points

What to Hand in

Failing to follow these points may decrease your “general execution” score. On Linux/Mac, make sure that your code compiles and runs by typing:

> mkdir build
> cd build
> cmake ..
> make
> ./A3 ../resources 1

If you’re on Windows, make sure that you can build your code using the same procedure as in Lab 0.
